Нейлоновая трубка
Трубки из нейлоновой смолы - это тип высокопроизводительных трубопроводных изделий, в основном изготовленных из нейлоновой смолы.
Тег:
Категория:
Детали продукта
Product Parameters
| Product Brand | Hengrun De | Product Name | PA Nylon Resin Tube | Temperature Range | -40℃~80℃/-40℃~120℃ |
| Applicable Range | High-pressure transmission and liquid transmission in the automotive industry, engineering machinery, and lifting transportation machinery. | ||||
| Product Function | Oil-resistant, heat-resistant, and aging-resistant performance, high pressure resistance, excellent pulse performance, can be used as a special tube for high-pressure painting and high-pressure cleaning machines. | ||||
| Liner Layer | Polyurethane/Nylon | Reinforcement Layer | Polyurethane Fiber/High Tensile Strength Steel Wire | Manufacturer | Hebei Jingxian |
Product Information Details
| Physical Properties | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Water Absorption Rate (%) | 3.5 | ASTMD-570 | |||||||
| Tensile Strength (kg/cm²) | 770 | ASTMD-638 | |||||||
| Elongation Rate (%) | 200 | ASTMD-638 | |||||||
| Bending Strength (kg/cm²) | 1000 | ASTMD-790 | |||||||
| Common Specifications Parameter Table | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Product Model | Specification (mm) | Outer Diameter (mm) | Inner Diameter (mm) | Length (mm) | Minimum Bending Radius (mm) | ||||
| Size | Tolerance | Size | Tolerance | ||||||
| PA6M0425 | 4*2.5 | 4 | ±0.1 | 2.5 | ±0.1 | 200 | 13 | ||
| PA6M0604 | 6*4 | 6 | ±0.1 | 4 | ±0.1 | 100 | 24 | ||
| PA6M0806 | 8*6 | 8 | ±0.1 | 6 | ±0.1 | 100 | 48 | ||
| PA6M1075 | 10*7.5 | 10 | ±0.15 | 7.5 | ±0.15 | 100 | 60 | ||
| PA6M1008 | 10*8 | 10 | ±0.15 | 8 | ±0.15 | 100 | 60 | ||
| PA6M1209 | 12*9 | 12 | ±0.15 | 9 | ±0.15 | 100 | 75 | ||
| PA6M1210 | 12*10 | 12 | ±0.15 | 10 | ±0.15 | 100 | 75 | ||
Product Characteristics
1. Excellent Material: Made from emerging organic polymer materials, widely used in many fields of the national economy due to its outstanding performance. The online pipe diameter control system ensures precise inner and outer diameters and uniform wall thickness.
2. Exquisite Appearance: The surface of the tube is bright and smooth, with no granular bumps, using high-quality color masterbatch, saturated colors, and long-lasting non-fading.
3. Product Performance:
● Temperature Resistance: -20℃~120℃
● Acid and Alkali Resistance: PH4~9
● Pressure Resistance: Working pressure 2.0MPa
● Burst Pressure: 6.0MPa
4. Black and White Main Colors: Regular colors: black/white transparent, custom colors available according to needs.
Resin Tube Series
PA, PA-11, PA-12 are wear-resistant and easy to bend, and many materials that can cause failure in other types of pipes have no effect on them.
The inner wall of PA, PA-11, PA-12 nylon pressure pipes is smooth, allowing for smooth liquid flow, with no rust or scaling.
PA, PA-11, PA-12 nylon pressure pipes can be bent and are easy to install, resistant to many chemical substances. They have a long lifespan within their application range, with great stability in tensile and bending. PA, PA-11, PA-12 nylon pressure pipes have high resistance, making them suitable as insulators. The pipes made from PA, PA-11, PA-12 nylon materials have stable dimensions and very low permeability.
Usage Range: Air, water, chemical lubrication, instrument lines, irrigation control systems, textile factories, food factories, fuel delivery pipes for vehicles and ships, vacuum systems, air conditioning systems, oscillation insulators, electrostatic insulators, and various industries.
Can maintain flexibility and normal operation within the temperature range of -40℃ to +120℃.
| Nylon pressure pipe technical parameters | ||||||
|---|---|---|---|---|---|---|
| Pipe marking mm | Outer diameter mm | Wall thickness mm | Allowable working pressure MPa | Минимальное давление разрыва MPa | Tolerance | |
| Outer diameter mm | Внутренний диаметр mm | |||||
| φ4×0.75 | 4 | 0.75 | 2.4 | 9.5 | ±0.1 | ±0.1 |
| φ4×1 | 4 | 1 | 2.75 | 11.0 | ±0.1 | ±0.1 |
| φ4.7×0.61 | 4.7 | 0.61 | 2.5 | 10.0 | ±0.1 | ±0.1 |
| φ5×1 | 5 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| φ6×1 | 6 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| φ6×1.5 | 6 | 1.5 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| φ7×1 | 7 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| φ8×1 | 8 | 1 | 2.0 | 8.0 | ±0.1 | ±0.1 |
| φ8×1 | 8 | 1.5 | φ8×1,5 | 2,1 | ±0.15 | ±0.1 |
| 8,5 | 9 | 1.5 | 2.0 | 8.0 | ±0.15 | ±0.1 |
| φ9×1,5 | 10 | 1 | φ10×1 | 7.5 | ±0.15 | ±0.1 |
| 1,9 | 10 | φ10×1,25 | φ8×1,5 | 1,25 | ±0.15 | ±0.1 |
| 8,3 | 10 | 1.5 | φ8×1,5 | 2,1 | ±0.15 | ±0.1 |
| φ10×1,5 | 12 | φ10×1,25 | φ8×1,5 | ф12х1,25 | ±0.15 | ±0.1 |
| 8,2 | 12 | 1.5 | φ8×1,5 | ф12х1,5 | ±0.15 | ±0.1 |
| 8,4 | ф14х1 | 1 | φ10×1 | 14 | ±0.15 | ±0.15 |
| 7,7 | ф14х1 | 1.5 | 2.0 | 8.0 | ±0.15 | ±0.15 |
| ф14х1,5 | ф15х1 | 1 | 15 | 7.5 | ±0.15 | ±0.15 |
| 1,8 | ф15х1 | 1.5 | φ10×1 | ф15х1,5 | ±0.15 | ±0.15 |
| 7,8 | 16 | 1.5 | 2.0 | ф12х1,25 | ±0.15 | ±0.15 |
| φ18×1 | 18 | 1 | 1.0 | 4.25 | ±0.15 | ±0.15 |
| φ18×1.25 | 18 | φ10×1,25 | 1.4 | 5.5 | ±0.15 | ±0.15 |
| φ18×1.5 | 18 | 1.5 | 1.7 | 6.8 | ±0.15 | ±0.15 |
| φ19×1.5 | 19 | 1.5 | 1.5 | 6.3 | ±0.15 | ±0.15 |
| φ20×2 | 20 | 2 | 1.6 | 6.5 | ±0.15 | t0.15 |
| φ22×1.5 | 22 | 1.5 | 1.3 | 5.3 | ±0.15 | ±0.15 |
| φ25×1.5 | 25 | 1.5 | 1.0 | 4.2 | ±0.15 | ±0.15 |
| φ28×1.5 | 28 | 1.5 | 0.8 | 3.2 | ±0.15 | ±0.15 |
| φ35×1.5 | 35 | 1.5 | 0.4 | 15 | ±0.1 | ±0.15 |
| φ40×2 | 40 | 2 | 0.4 | 1.6 | ±0.15 | ±0.15 |
| φ45×2.5 | 45 | 2.5 | 0.45 | 15 | ±0.18 | ±0.15 |
| φ51×2.5 | 51 | 2.5 | 0.4 | 1.6 | ±0.18 | ±0.15 |
| φ64×3 | 64 | 3 | 0.4 | 1.6 | ±0.2 | ±0.2 |
| φ76×3 | 76 | 3 | 0.35 | 1.4 | ±0.2 | ±0.2 |
| φ80×3 | 80 | 3 | 0.3 | 1.2 | ±0.25 | ±0.2 |
| Note: Specifications not specified in the table can be processed and produced according to user requirements. | ||||||

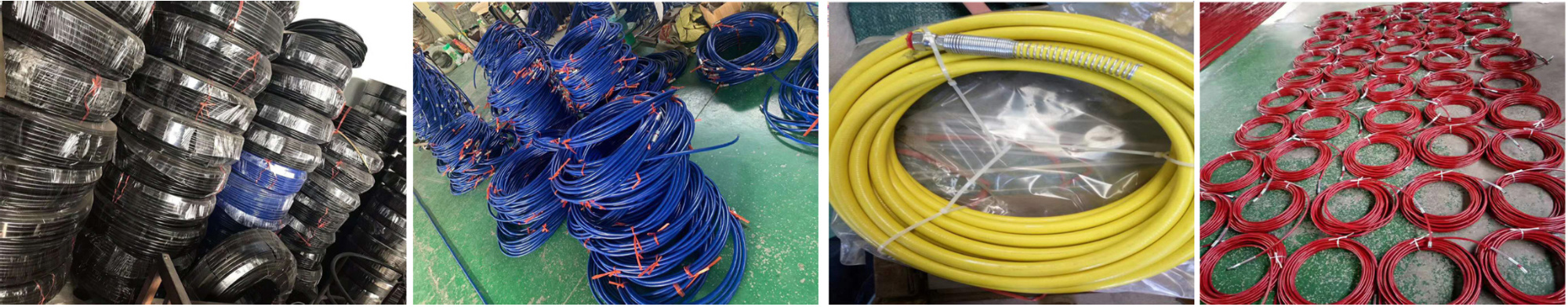

Product photography supports customization.

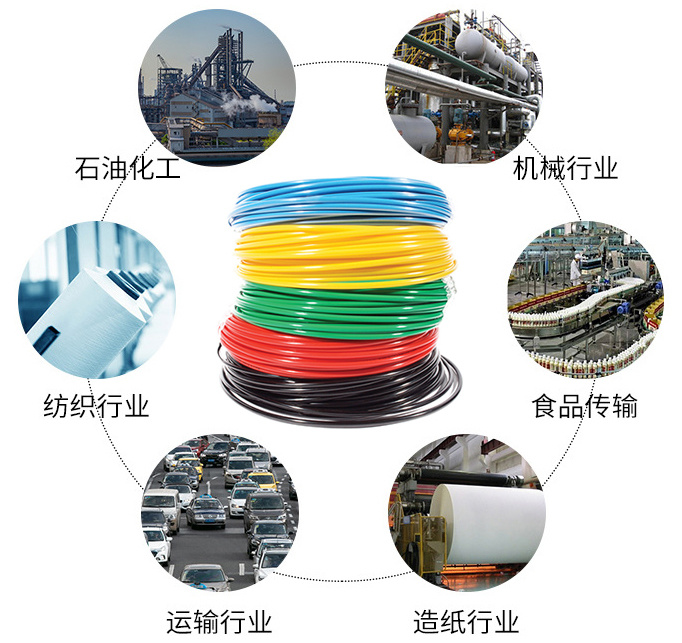

Application range
Used in various industries such as air, water, chemical lubrication, instrument lines, irrigation control systems, food factories, fuel delivery pipes for vehicles and ships, vacuum systems, air conditioning systems, oscillating insulators, electrostatic insulators, etc.
